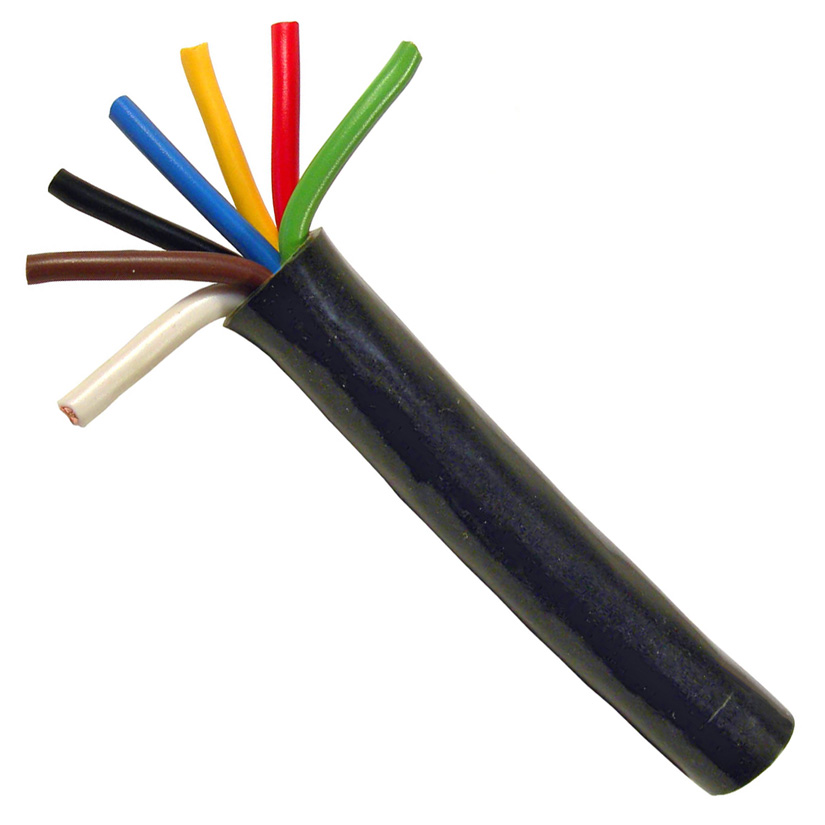

Trailer Cable is composed of a heavy duty PVC jacket compacting insulated Primary Wire Conductors to protect against environmental elements, chemicals and abrasion. The Trailer Cable becomes an integral part of a Tow Vehicle to Trailer’s electrical system supplying power to brakes, safety and lighting systems. The Conductors are color coded to enable easy identification and follow industry standards.
12 Ga 6 Conductor – 10 Ga 1 Conductor
12 Ga Red/Black/Brown/Green/Yellow/Blue & 10 Ga White
Meets SAE J1128 & SAE J378 Specifications
Operating Temp 176°F to -85°F
