Crimp-Solder-Heat Shrink Butt Connectors are a Tin Plated Copper Connector with a Solder Ring and an Adhesive Lined Polyolefin Heat Shrink Sleeve. Soldering gives a strong, permanent, vibration resistant connection. Strip ends of both wires and insert one wire completely through connector. Fray wire strands of both wires, intermingle & overlap ends. Carefully slide wires back through connecter, centering in middle of fluxed solder ring. Crimp both ends of barrel to hold wires in place while soldering. Slowly apply heat (300°F) until solder melts and inner adhesive wall of sleeve softens, melts filling voids, and outer wall shrinks. Cool for a strong waterproof, vibration and corrosion resistant connection.

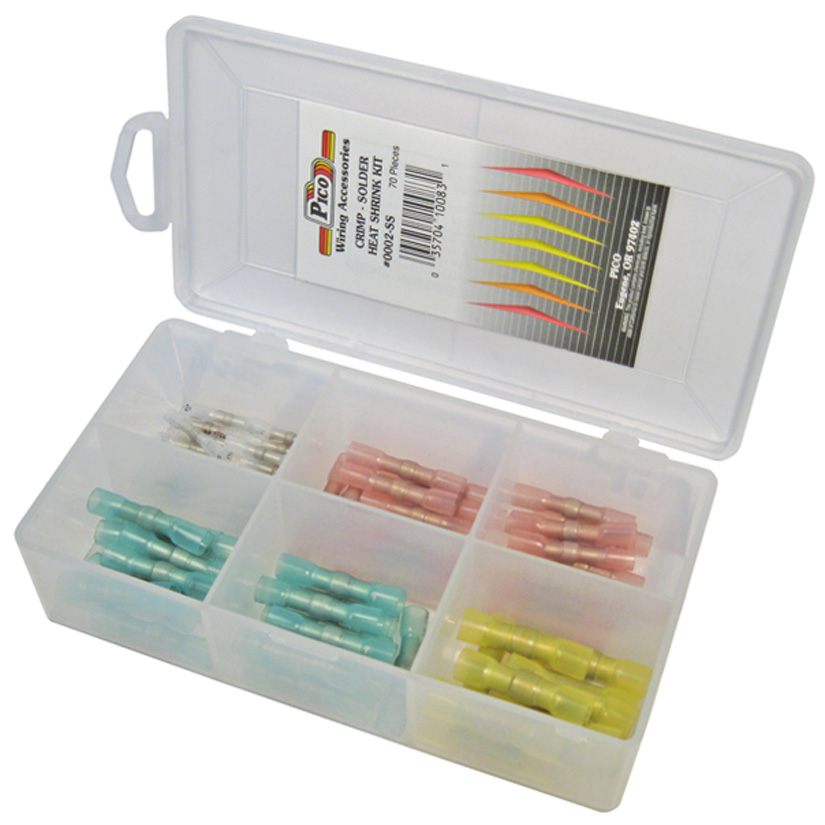

70 Piece Assorted Crimp-Solder-Heat Shrink Butt Connectors
Clear 22-24 AWG – Red 22-16 AWG – Blue 16-14 AWG – Yellow 12-10 AWG
Strong Permanent Watertight Connections
Kit Size: 6-1/2″ x 3-1/2″ x 1-1/2″ With Hang Tab
